Mode FREEHOIST+

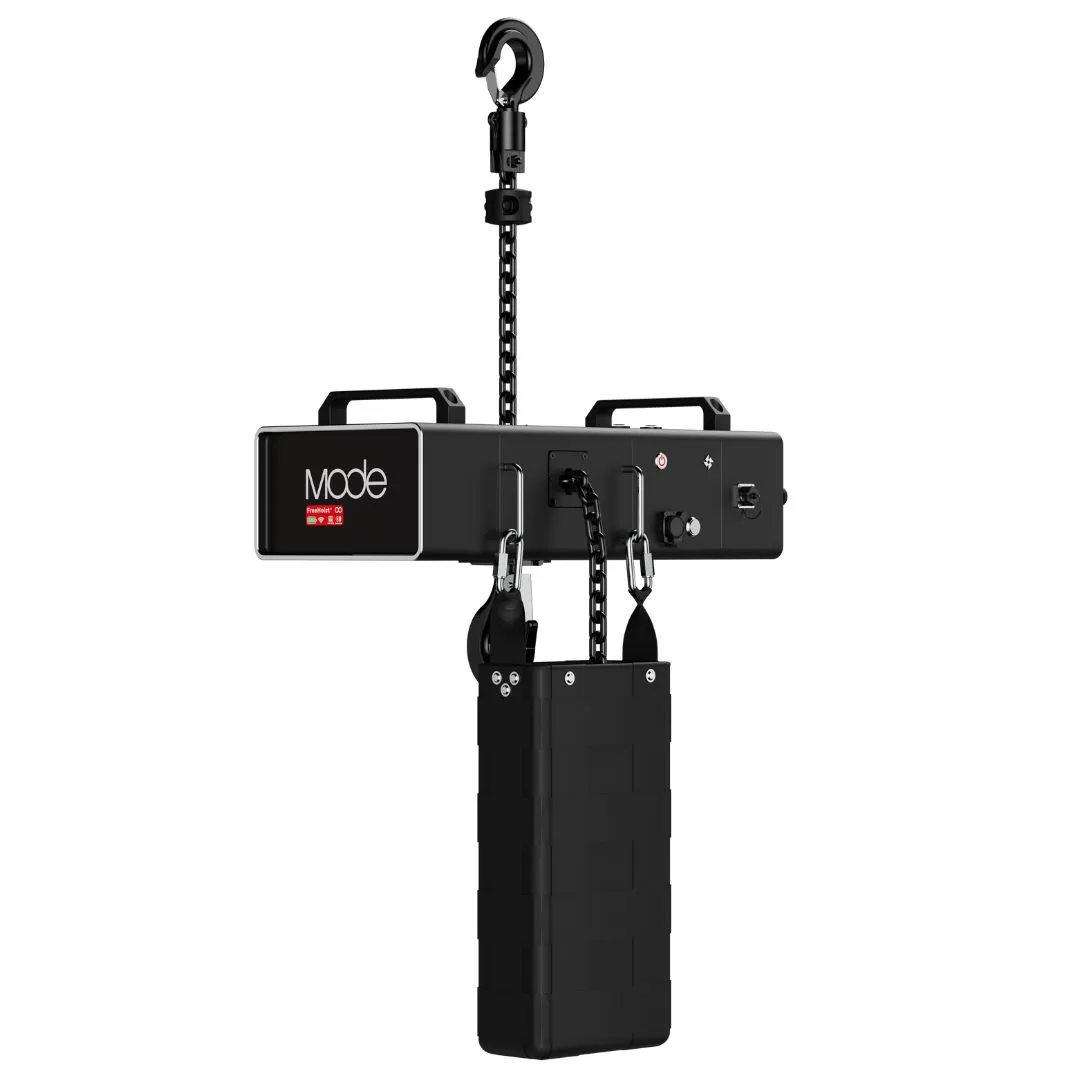

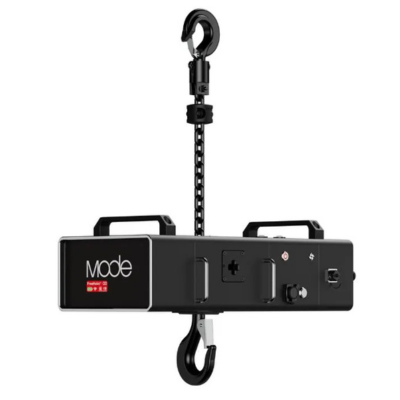

Mode Wireless FreeHoist Plus – Battery powered
TGC are proud to offer the wireless Freehoist battery powered stage hoist as part of our range of professional rigging equipment.
LOLER Certified, The FreeHoist Plus developed by Mode China, is the world’s first truly wireless stage hoist. It requires no power cables and no control console, and delivers up to 168 hours of operation on a single charge, meeting the rigging and build-up needs of a wide range of stage productions and events.
Battery Powered
Free from power-cable limitations
Multi-terminal control
It can be operated using handheld
controllers, mobile phones or tablets and laptops..
Permanent magnet synchronous motor
Synchronised lifting across multiple hoists with less than 1 cm deviation
Solving key challenges in stage rigging
By being battery powered and wireless, the Freehoist by mode solves these challenges:
- No more cluttered stage setups. You can eliminate complex cabling for a clearner, safer, and more organised work engvironment.
- Reduce labour costs. You can skip traditional wiring processes to lower installation and maintenance expenses.
- Reduce setup time. No time-consuming cabling required – you can activate the equipment quickly and accelerate the entire rigging schedule.
- Flexible hoist operation. You can operate the freehoist through the phone app for greater freedom and adaptability acroose diverse stage scenarios.
CONTROL FUNCTION
Featuring group operation, 100m control range and stable signal:
- Control terminal can operate up to 100 hoists simultaneously
- Effective control range up to 100 meters radius
- 2.4GHz & 5.8GHz dual-band wireless communication for enhanced
anti-interference - All hoists automatically stop within 1.5 seconds if one hoist stops to
ensure on-site safety - Custom group names
- Hoist grouping sequence remains unchanged when switching
control terminals - Users can monitor wireless signal strength via the control terminal
Product Features
Key features of the Free Hoist Plus are dual brakes, limit switch and 45 degree chain guide:
- Aerospace-grade aluminum housing for high strength and lightweight design
- Adjustable upper and lower limits with high-precision micro switches cut power automatically at chain extremes.
- Patented 45° chain guide ensures smooth chain operation and reduces jamming.
- A dual electromagnetic brake system significantly reduces the possibility of brake failure, improving operational safety and stability.
- Precision noise-reducing gears provide constant torque with
low heat and noise. - Permanent magnet synchronous motor with fast dynamic response for frequent start-stop and precise positioning, reducing wear and maintenance while extending service life.
Power Lithium Battery
The battery within the Free Hoist offers the benefits of safe and stable operation, long lasting battery life and BMS control.
- The power lithium battery can support the FREEHOIST carrying a load of 800kg over a round-trip distance of 144m.
- The power lithium battery has no “memory effect” and can be charged at any state of charge.
- With weekly charge-discharge cycles, after 6 years of use, the battery still retains 87% of battery life.
- Built-in BMS chip optimizes charge and discharge through balancing management, reducing battery aging and extending service life.
- Power lithium batteries are more environmentally friendly; lithium extraction, use, and recycling do not cause significant environmental pollution.
- Each lithium cell undergoes 17 rigorous tests covering fatigue, degradation, high temperature, charge/discharge, and other dimensions, ensuring stable performance and safety, providing long-lasting and strong power for the wireless hoist.
The battery within the Free Hoist offers the benefits of safe and stable operation, long lasting battery life and BMS control. Complying to these international standards:
- EU – Regulation EU 2023/1542 EN IEC 610000-6:2019, EN EIC 61000-6-2:2019
- Japan – J62133-2(2021), JIS C 621332-2:2020, KC 62133:2019
- Korea – IEC62133-2:2017, AMD1:2021
- USA – UL 2595:2015 Ed.2
Multiple Safety Protections
Providing comprehensive protection for operational safety, reducing loses and potential risks.
Signal Interruption Protection
With multiple hoists working simultaneously, once one or more motors lose signal then immediate stop command will be activated to ensure the overall safety
Anti Chain Jam Function
During hoist operation, if any abnormalities ,such as chain knots or jamming occurs, the system will automatically detect and stop the motor to prevent chain breakage, motor overload, or other malfunctions, protecting core components from damage and avoiding safety hazards caused by chain jamming.
Over-travel Protection
Iln case of top collision, hoist will stop automatically and cut off power output instantly, preventing mechanical damage and component wear, extending service life and reducing maintenance costs.
Over-speed & Stall Protection
During operation, if the motor loses power or other abnormal conditions, the auto matic shutdown protection will be triggered to prevent safety risks ,such as fall and deviation, ensuring the safety of operators and equipment.
FreeHoist+ Technical Spec
| Dimensions | 550 x 140 x 25 mm |
| Battery Specifications | 36 V 180 Wh |
| Net Weight | 30 kg |
| Certification | D8+/UL |
| Rated Payload | 1000 kg |
| Rising Speed | 3.5 m/min |
| Body Colour | Black |
| Standard Chain Specification | (Black Oxide) 7.1 x 21 mm (G100) |
| Electronic Load Limiter | Yes |
| Appearance Material | Aerospace Grade Aluminium Alloy |
| Built-in Load Sensor | Yes |
| Remote Power Switch | Yes |
| Wired Control Interface | Yes |
| Noise | 53 db |
| Brake | Dual Brake |
| Protection Degree | IP65 |
| Full Charge Standby Time | 25 days |
| Wifi | Standard Configuration |
| Wireless Spectrum | 2.4 GHz & 5.8 GHz |
| Working Grade | M5 |
The FreeHoist+ Is Available To Rent Or Buy
Rental Options
Our introductory offer is based on lifting power required:
| Lifting Power | Rental Cost |
| 250 kg | £45 + Vat Per Week |
| 500 kg | £55+ Vat Per Week |
| 1000 kg | £70 + Vat Per Week |
Get in touch today. For more information, prices and availability, give us call or send an email:
Purchase Option
Invest in buying your own battery powered stage hoists.
10% discount available if you buy more than 10.
Price £2737
